PANASONIC


AC Gear Motor

Application​

​

INDUCTION MOTOR

  • Vending Machines

  • Conveyors, Displays

  • Insertion Machines

​

REVERSIBLE MOTORS

  • Vending Machines, Hospital beds Food process machines

  • Shutter, elevator, lifts

  • Automation machines

​

VARIABLE SPEED MOTOR Conveyors, Label printers

  • Printing pressers

  • Dryers

  • Tennis Machines

  • Labour saving machines

​

ELECTRO-MAGNETIC BRAKE MOTOR

  • Conveyors

  • Hospital beds

  • Automatic machines

​

VARIABLE SPEED WITH ELECTRO

MAGNETIC BRAKE MOTOR

  • All application of variable speed and electromagnetic brake motor

Features

​

INDUCTION MOTOR

  • Continuous ratings

  • Wide variety of products

  • Suitable for general use

​

REVERSIBLE MOTORS

  • 30 minute rating

  • Instant reversible rotation

  • Built-in brake

  • Smaller Overrun

​

VARIABLE SPEED MOTOR

  • Built-in tacho Generator

  • Functions such as braking & soft-start/soft-stop

  • Non-step changing with speed controller

  • Variable speed with reversible rotation,

  • Slow-start and slow-stop

​

ELECTRO-MAGNETIC BRAKE MOTOR

  • Built-in non-excited E/B

  • Instantly activated brake Suitable for repetitive reverse rotation

  • Common power used for both motor and brake High braking torque/holding torque

​

VARIABLE SPEED WITH ELECTRO

MAGNETIC BRAKE MOTOR

  • All features of variable speed and electromagnetic brake motor

​

Range

  • 1 ph/220 volts: 6W to 40W 3 ph/200 volts: 6W to 90W

Panasonic


Speed Controller

Features

​

  • Internal speed changer

  • Electric brake enables instantaneous stop

  • Compact 8P plug-in

  • Variable Speed, Reversible rotation, Slow-start, & Slow-down

​

Range

  • 6W to 90W

product-jpeg-500x500 (1).jpg

Unit Type Motor

Features



  • Digital Speed setting/ 8 read out

  • Soft start, soft down function

  • Set lock function

  • Analog & Digital setting for speed controller

  • Combine model of speed controller and ac gear motor

  • Extension of cable: 5m

​

Range

  • 6W to 90W


Gear Head Ball Bearing / Metal Bearing Type

Features​

​

  • 5 hours/ day or longer operation

  • Continuous operation

  • Speed range 1 to 500 rpm

​

Range

  • 15W to 90W

  • Decimal gear head

Panasonic


Brake Unit

Features

​

  • Electric brake unit for instant stop

  • Longer life expectancy & perform inching function

  • Intermittent action, Shot action

  • High brake torque

​

Range

  • 6W to 90W


AC Servo System - MINAS A5 Series
Space Saving with High Performance Servo Drive

Features



  • High resolution encoder (20-bit)

  • 2.3kHz fastest velocity response frequency

  • Two Degree-Of-Freedom (2DOF) control system to improve productivity & machining accuracy

  • Smooth operation and reduced vibration

  • at stopping

  • Light weight and more compact motor with innovative core & encoder

  • Accurate positioning in a short time

  • Proprietary signal process gives 1.4 million pulses with 20-bit encoder

  • Most stable speed, lower cogging & low noise

  • 1/0 operate at high speed of 4Mpps

  • Auto/manual notch filter & damping filter

  • Easy machine simulation

  • IP67 Enclosure rating

​

Range

  • 0.05kW to 15kW, 10/30 220 V

  • 0.4kW to 15kW, 30 440V


AC Servo System -
LIQI Series
Space Saving with High Performance Servo Drive

Features​

​

  • Input power range: AC 220V (200V ~ 253V)

  • Motor rating: MHMD***J1* : 200W/1.0kW  MHMJ***P1*: 400W/750W/1.0kW/ 1.2kW

  • Control mode : Position command

  • Response frequency: 1kHz

  • Pulse command up to 500kHz

  • Advanced PANATERM software

  • Gain setting through RSW or software

  • Vibration filters and notch filters for smooth operation

  • IP65 protection

  • Ambient temperature: 0° to 50° C

​

Range

  • 0.2kW to 1.2 kW, 10 220 V

AC Servo System


MINAS A5N
100Mbps Network Servo Drive

Features

​

  • High resolution encoder (20-bit)

  • Easy to use servo gain-tuning with real-time auto tuning

  • 100Mbps Communication

  • Compact & Small with High Performance

  • Real time communication

  • 100Mbps Full duplex

  • 0.5ms cycle with up to 32 axes

  • Max. 60m length inter node-cable

  • All axes synchronization for interpolation

  • Parameter setting and monitoring Low cost system with Less wiring

  • High noise immunity (IEC61000-4-4 compliant) 2.3kHz velocity response

  • Advanced real-time automatic gain-tuning

  • Vibration reduction control Previous

​

Range

  • 0.05kW to 5.0kW, 10/30 220 V 0.4kW to 15kW, 30 440V


MINAS A5B Series
100Mbps Network Servo Drive

Features

​​

  • Real-time communication: 100Mbps via CAN application protocol over EtherCAT (COE)

  • Supports positions (pp, csp, ip, hm), Velocity (pv, csv), Torque control (tq, cst) and safety standards just like MINAS A5

  • Manual and automatic damping filters

  • Complete set of commands for up to 64 axes per Network Easy wiring using standard Ethernet cables

  • (CAT5e, up to 100m between units)

​

Range

  • 0.05kW to 15kW, 10/30 220 V

High Quality Brushless Motor

download (6).jfif

GV/KV Series

Features

​

  • Rated speed: 3000 RPM & Max 4000RPM Standard and high torque gear head can be use

  • Full time sine-wave drive with original CS sensor

  • Internal Position control

  • Programable DI/DO

  • Constant torque at 0-3000 RPM

  • Highly precise speed control with no slip

  • Low vibration, Low noise

  • Compact size

​

Range

  • 50W, to 130W (GV Series)

  • 50W to 750W (KV Series)


GP Series

Features

​​

  • Rated speed: 3000 RPM & Max 4000RPM

  • Standard and high torque gear head can be use

  • Full time sine-wave drive with original CS sensor

  • Internal Position control

  • Programable DI/DO

  • Constant torque at 0~3000 RPM

  • Highly precise speed control with no slip

  • Low vibration, Low noise

  • Compact size

  • Range

  • 50W, 90W & 130W

​

Range

  • 0.05kW to 15kW, 10/30 220 V

Vision System

download (7).jfif

Machine Vision System Imagechecker: PV500

  • Solution for wider applications

  • "4+1" Penta-Processor for ultra high speed processing

  • 2-megapixel digital camera for high-resolution high-definition image inspections

  • Quad-speed camera and two-portion image capture for high-speed operation

  • Compatible with an XGA monitor with the highest resolution in its class

  • Ultra high-speed transfer by Gigabit Ethernet


2D Code Reading Sensor PD60/65

  • Robust reading of 2D codes

  • Two types of models: PD60 for Stationary peration & PD65 for Handy operation

  • Realization of highly accurate reading using original algorithm

  • Industry's first oil-resistant construction (IP67G),

  • ensuring maintainability

  • Guide light (Red LED) enables easy fitting and installation

download (8).jfif

Machine Vision System Imagechecker PV200

  • High end performance in a compact body

  • Improved inspection reliability and reducing engineering time

  • Supports color cameras of 0.3 and 2 mega pixels

  • Offering gray cameras for 0,3, 2 and 4 mega pixels

  • New advance functions provides solutions of difficult applications

  • PV230: OCR/OCV & code reading functions

  • PVWIN200 PC based setup software for easy to use and drag-and-drop operations

Sensors


COMPACT PHOTOELECTRIC SENSOR CX-400 SERIES

  • The world standard CX-400 series offers total

  • lineup of 148 models

  • Compact size (W11.2 x H31 x D20 mm) with competitive price

  • Retro-reflective type with polarizing filters and transparent object sensing

  • Strong against dirt, noise, oil, coolant liquids, ethanol & even in cold environments

  • CX-440 Series: With BGS and FGS functions & can sense difference of 0.4 mm

pic01 (1).gif

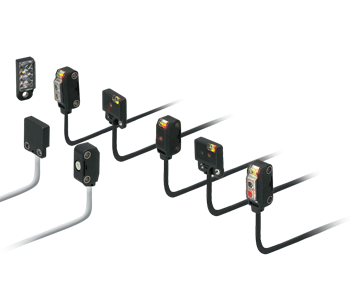

ULTRA-COMPACT & ULTRA-SLIM PHOTOELECTRIC SENSOR EX SERIES LINE-UP

  • Extraordinarily small and slim size with Amplifier built-in

  • Flexible mounting, waterproof (IP67) and bright 2 color indicator

  • EX-10 Series: Very small size-just W10 x H14.5 x D3.5 mm

  • EX-20 Series: Incorporates a sensitivity adjuster and long sensing range

  • EX-30 Series: Threaded miniature type a new alternative to fiber sensors

pic01 (2).gif

CYLINDRICAL PHOTOELECTRIC SENSOR CY-100 SERIES

  • Sensor has M18 thread size for convenient mounting

  • Availability of Thru-beam type, Retro-reflective type & Diffuse-reflective type

  • Slit mask for thru-beam sensor for detecting small object or enhancing accuracy

  • Environment resistant IP67 construction

  • Strong resistance against vibration since it is filled up with resin

Sensor


MICRO PHOTOELECTRIC SENSORS PM SERIES

  • Extremely small size enables space saving and quick installation

  • Equipped with two independent outputs

  • K type, T type, L type, Y type, F type &

  • R type available

  • PM2 Series: Convergent Reflective type ensures stable detection

  • Dark object and Minute object detectable and hardly affected by background


ADJUSTABLE RANGE REFLECTIVE PHOTO ELECTRIC SENSOR EQ-500 SERIES

  • Longest sensing range in diffused type sensor

  • Long sensing capability up to 2.5m

  • Stable sensing unaffected by color or gloss

  • Multi-Voltage type with 12 to 240 V AC &

  • 12 to 240 V DC

  • DC voltage type equipped with BGS/FGS function which is not affected by background objects

  • Cabling enabled by way of a terminal block


MULTI-VOLTAGE PHOTOELECTRIC SENSOR NX5 SERIES

  • The slanting step-wise terminal for quick and easy connection

  • It can operate at 24 to 240 V AC or 12 to 240 V DC Universal supply voltage which makes it suitable all over the world

  • Incorporates timer function models which suitable for PLC input

  • Retro-reflective type with polarizing filters is also available

Sensor


Digital Color Mark Sensor LX-100 Series

  • Equipped with 3 LEDs - Red, Green & Blue

  • Two selectable sensing modes for any application: (A) Mark mode, (B) Color mode

  • Its 4-digit display and 3 large buttons makes easy setting of application

  • High precision coaxial reflective optical  system & 12-bit A/D converter

  • Compact design for significant space saving

New-original-Matsushita-color-sensor-LX-111-photoelectric-photoelectric-switch-Panasonic-M

MARK SENSOR LX-111 SERIES

  • New user friendly model with only 2 button operation

  • Automatic selection of the optimal LED

  • Ultra high-speed response time of 45 µsec.

  • External teaching facility for remote operation

  • M12 plug-in connector model for easy maintenance

pic01 (3).gif

INDUCTIVE PROXIMITY SENSORS RECTANGULAR GX-F/H SERIES CYLINDRICAL GX SERIES

  • Rectangular proximity with 6 mm, 8 mm, 12 mm and 15 mm sensing face dimensions

  • Both front sensing and top sensing model are available with NPN or PNP output options

  • Highly resistant to water or oil and IP68g protective construction

  • Cylindrical proximity with 3.8 mm to 30 mm. diameter

  • GA-311: Amplifier-separated proximity for compact mounting space

Sensor


FIBER SENSOR HEAD FT/FD/FR SERIES

  • Full line-up of Fiber head from general use fibers to special fibers

  • Standard fiber: For basic applications and excellent cost effectiveness

  • Tough flexible fiber: For high impact and shock resistance with no breakage

  • Retro-reflective fiber: For detection of glass substrate / specular object

  • Special fibers: Heat-resistant, Chemical-resistant. Vacuum resistant fiber


DIGITAL FIBER SENSOR FX-300 SERIES

  • Full line-up from general use fiber amplifiers to special purpose fiber amplifiers

  • Fiber Amplifiers with Dual display and

  • MODE NAVI technology An optical communication function allows to connect 16 sensors

  • FX-301-HS: High-speed response of 35 us

  • Very simple operations which make it user friendly!

Panasonic-Sensor-Digital-Fibre-Amplifier-Sensor-FX100-Panasonic-Industrial-Automation.webp

DIGITAL FIBER SENSOR FX-100 SERIES

  • Dual digital display type fiber amplifier for simple setup

  • Easy teaching using ON/OFF buttons

  • Interference prevention functions for up to 4 units

  • Multi-function external input function, Timer functions & quick code input function

Sensor


MICRO LASER DISTANCE SENSOR HG-C SERIES

  • All-in one model, Compact in size

  • Excellent level detection performance with10μm repeatability

  • Fitted with a precise CMOS image sensor

  • Easy Teaching with window comparator mode

  • Equipped with 0-5 VDC analog output

  • An aluminum die-cast casing protects from stain & heat

  • Ensuring IP67 protection housing

download (9).jfif

DIGITAL LASER SENSOR (AMPLIFIER SEPARATED) LS SERIES

  • 6 types of laser sensor head for various applications

  • Compact size and easy and accurate adjustment of sensor

  • Long sensing range up to 30 m

  • Laser Amplifiers with 2 large 4-digit display for easy settings

  • Equipped with MODE NAVI customized function

pic01 (1).jpg

ULTRA-COMPACT LASER SENSOR (AMPLIFIER BUILT-IN) EX-L200 SERIES

  • Ultra-compact design! Just W8.2 x H27-4 x D13 mm in size

  • Best suitable for positioning and minute object detection

  • Offering thru-beam type, retro-reflective type and diffuse-reflective type models

  • Incorporating safe Class 1 lasers as its light source

  • Strong against water and dust with IP67 protection structure

Sensor


DIGITAL PRESSURE SENSOR DP-100 SERIES

  • Analog output type with dual 3-color display to make operation easier

  • Dual display allows direct setting of threshold value

  • Copying via wiring reduces man-hours and human error

  • Light-weight, compact size, din-rail mounted digital pressure sensor

  • High accuracy & resolution with Micro-differential digital pressure sensor


PICKING SENSOR NA1 SERIES

  • Slim body, just 10 mm thick

  • Equipped with large, bright, clearly visible job indicator

  • Ultra-slim body picking sensor with 3 meter sensing range

  • Selectable detection operation & lighting pattern selectable

  • Space-saving, pocket lighter-size unit also available

pic01 (4).gif

GENERAL PURPOSE & SLIM BODY AREA SENSOR NA2-N SERIES

  • Slim body, just 13 mm thick

  • Clearly visible wide job indicator

  • Interference prevention for parallel installation Selectable lighting pattern

  • Maximum sensing height of 540 mm

  • Convenient test input/emission halt function

Sensor


SAFETY LIGHT CURTAIN (TYPE 2/TYPE 4) SF2B/SF4B SERIES

  • Type 2 and Type 4 safety system with 3 different workplace conditions

  • Unit length dead zone Protective height, "ZERO"

  • Supports both PNP and NPN polarities in a single model

  • Equipped with a digital error indicator & beam-axis alignment indicators

  • Handy-controller enables the user to select a variety of settings

download (10).jfif

ULTRA-SLIM LIGHT CURTAIN (TYPE 2/TYPE 4) SF2C/SF4C/SF4B-C SERIES

  • Introducing light curtain that combines high end performance with an ultra-slim enclosure

  • Slim size just 13.2 mm to improve productivity by expanding the available work space

  • Large built-in multi-purpose indicators provides wide visibility

  • Useful built-in muting control function improves productivity

  • Offers fast response time, light weight and IP67 protection structure

download (11).jfif

LASER DISPLACEMENT SENSOR HL-C1/HL-C2/HL-G1 SERIES

  • Ultra high-speed, high-precision and stable measurement of variety of objects

  • Utilizing HDLC-CMOS sensors for high resolutions and high speeds

  • Linear beam spot and small beam spot type sensor head for various applications

  • HL-G1: The single instrument combines sensor head, in-built controller and digital readout

  • Compact design, lightweight and IP67 dust- and water-proof protective enclosure

Sensor

pic01 (5).gif

EDDY CURRENT DISPLACEMENT SENSOR GP-X/GP-A SERIES

  • High-speed, high accuracy Eddy current type digital displacement sensor

  • Accurate measurement of minute displacements

  • Various types of compact sensor head for

  • different applications with IP67 protection

  • Controller offers 5-digit, dual 2-color digital display for great visibility

  • Providing RS-232C standard interface for multiple functions


PARTICULAR USE SENSOR

  • NA1-11: Cross-beam scanning system to detect slim objects

  • FZ-10: Color detection fiber sensor for reliable and precise color discrimination

  • EX-F1: Reliable liquid level detection with amplifier built-in

  • TH Series: Quick, non-contact detection of hot melt glue

  • GD Series: Double feed detection of various metal sheets


Digital Flow Sensor

  • Integrated display type for Clean air,

  • Compressed air or Nitrogen gas

  • Easy-to-use dual color with sub display

  • One sensor for both intake and exhaust

  • Analog voltage output and key lock function

  • For Low, Medium and High flow rate

Laser Marker


Fayb Laser Marker

  • FAYD Laser Marker; 1.06μm Wavelength

​

  • LP-V SERIES High speed marking at 700 cps, Scanning speed: Max. 12,000mm/sec.,

  • Line speed: 240m/min., or less

  • High peak power enabling it to generate sharp & deep marking on metals

  • Marking on metals & coloring on resins is possible

  • Energy saving design, Complete air-cooling, Long Life, Space-saving design

  • No consumables No Consumption

  • (.e., Purified Water Filters lonic exchange resin etc...), ZERO incidental equipment (i.e., Chiller, Pipes & pumps etc...). ZERO coolant (.e., Purified water, Tap water etc...)

​

  • LP-5500W a new standard black laser annealing

  • Printing is done uniformly regardless of height

  • differences

  • Marking size and position are corrected automatically

  • IP67G fan less head

  • Simple mounting removable fiber unit


CO2 Laser Marker

  • CO2 Laser Marker; 10.6μm Wavelength

  • LP-400 Series High grade Model

  • Standard & Tower Head Model available

  • High speed marking at 700 cps, Scanning speed: Max. 12,000mm/sec.

  • Line speed: 240m/min., or less

  • Head rotation up to 350° allows flexible installation option. (standard models)

​

  • LP-310 New entry level Model for Laser Marking

  • Accurate and distinct marking

Head Office :shop No 15, S.no.26/6b, Yashgangaa Residency, Near Abhiruchi Paranjape Parisar, Dhayari, Pune-411041

b2stechsol@gmail.com

+91 8484062327, +91 7840986572

  • Gmail_29991 (1)
  • Whatsapp
  • Whatsapp
bottom of page
